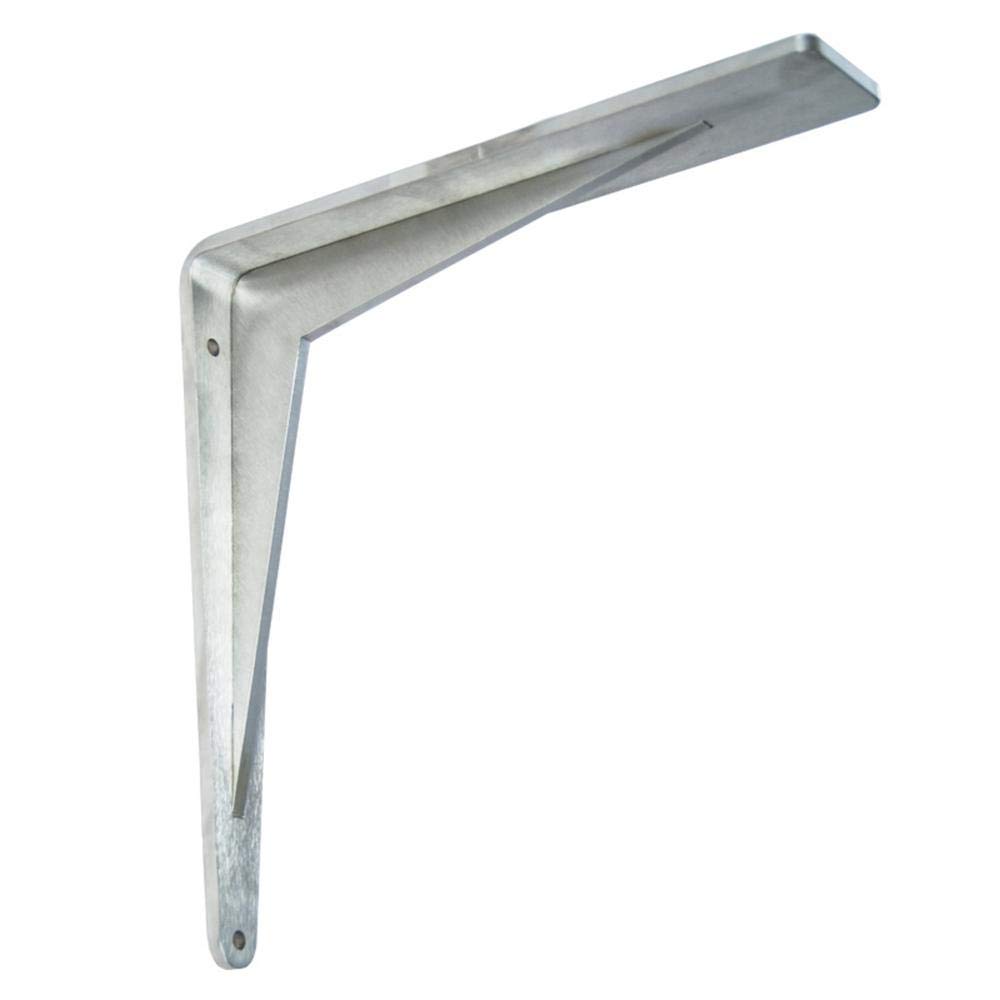

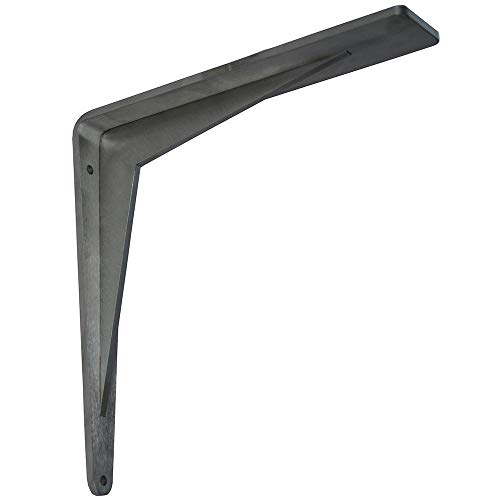

The Chevron Low Profile Countertop Support The Chevron countertop support bracket has a slim gusset that provides additional support for heavier stone countertops such as granite, quartz, concrete and other solid surfaces. The Chevron is the perfect selection for supporting your wall hung counters, floating desks, etc. with no worry of knee knocking. A 500-pound carry capacity makes it perfect when there is no other support available. The Chevron is suggested for use in all standard applications where a countertop bracket is used – island extension, half wall or pony wall applications and wall shelf mounted. The Chevron is not useful in the elevated countertop application, though Federal Brace carries many other braces useful for elevated applications. View these on our company page. Sizes – 10", 16", 18" Finishes – Unfinished Steel, Stainless Steel Material Thickness – ¼” thick steel or stainless steel Holes – 3 ¼" Straight Holes Every Chevron Low Profile Support is designed, manufactured, inspected, and distributed in America. This not only allows Federal Brace's product tests to be extremely rigorous but allows us to provide a full product promise. We take our motto seriously: "Beautifully-Crafted, Confident Support." We aim for you to have a beautiful, blemish-free installation and for you to be confident in the level of support that both we and our brackets provide. Each of our Chevron is tested to withstand up to 500 pounds of an evenly-distributed static load when installed on a stud. When evenly spaced across a bar, countertop, or shelf, at up to 30" apart, the Chevron will hold immense amounts of weight. While we are referencing the Chevron, these installation guidelines apply to each of Federal Brace's Low-Profile Countertop Supports. To view more installation guidelines join us online at Federal Brace. Chevron - Special Features The unique form and installation of the Chevron allow for ADA Compliance when installed according to Section 4.23 and 4.2.3 guidelines. Our Chevron Low Profile Supports are designed to provide the strength that comes from a gusseted metal bracket. The material thickness of the Chevron is ¼” steel or stainless steel L-bracket with a width of 2". Despite it's sturdiness, the Chevron is simply beautiful. The squared upper flange remains hidden from view while the tapering lower flange emits a graceful and modern design. Our goal is to ensure that our products strength and load-bearing capacities exceed your expectations. The countertop support bracket gusset is an vital part of the completed bracket design, particularly in situations where the bracket is expected to maintain a high weight. The Chevron's sturdy gusset provides additional resistance to deflection, giving the brace an overall carry capacity of 500 pounds. Chevron - Welds While working to create outstanding structural value, we also make sure that our finished supports meet the standard of elegance and quality that you have come to expect from the Federal Brace brand. We design our brackets with a tab and slot weld so there is no visible weld on the front of the bracket. The slot is then filled with a 1/2" of weld. According to the American Welding Society (AWS) Standards, a ½ inch weld can withstand an ultimate load of 1,200 pounds. A plug weld is calculated to resist at least a 600 pound shear force across the weld. Federal Brace uses this type of weld so that the bracket is built as strong as possible while limiting any discoloring or compromising of our brackets aesthetic value. The Federal Brace Difference True décor starts with care. To have a truly decorative element you have to care about the craftsmanship and quality of your product. Federal Brace exemplifies care. Throughout our entire manufacturing process, our brackets are treated with attention to detail which produces a product with an uncompromised craftsmanship and unmatched quality. Federal Brace provides the complete solution to the consumers needs. With the largest selection of designer support brackets, that are specifically crafted for the support of granite and other solid surface countertops, Federal Brace has become a standard for innovative solutions in the market.
